List Price : Price : $49.99
Product Description

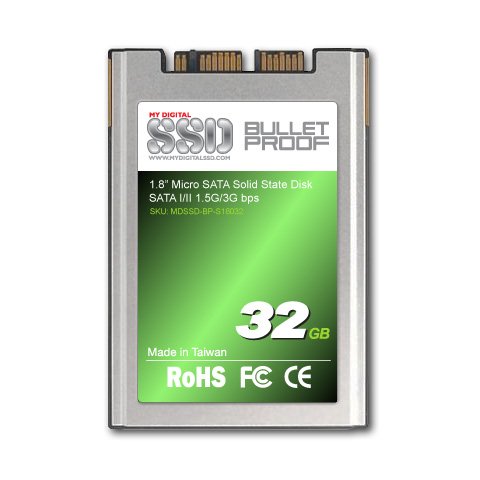

MyDigitalSSD Bullet Proof 1.8" Micro SATA Solid State Drives (SSD) deliver all the advantages of Flash Disk technology with Serial ATA II interface, fully compliant with standard 1.8-inch form factor.
The 1.8" SATA SSD is based on the uSATA connector which contains 7-pin interface for data segment and 9-pin for power segment, designed to operate at a maximum operating frequency of 150MHz with 30MHz external crystal.
Also it can reach more than 200MB/s read as well as write high performance based on MLC flash (with 128MB mobileDDR enabled and measured by CrystalDiskMark v3.0 1000MB test unit). The power consumption of Flash Disk is much lower than traditional Hard Drive. In addition, MyDigitalSSD Bullet Proof drives provide hot-swapping abilities when removing, replacing or upgrading flash disks.
Electrical/Physical Interface
SATA interface
- Support SATA 1.5Gbps and 3Gbps interface
DDR1 IO
- Support DDR1 I/O interface
Flash IO
- Support 1.8V and 3.3V voltage level
- Support 1.8V for ONFI Flash
- Support 3.3V for conventional Asynchronous Flash
Controller Features
SATA Revision 2.6 compliant
Compatible with SATA 1.5Gbps and 3Gbps interface
Power management supported
Support expanded register for SATA protocol 48 bits addressing mode
Embedded BIST function of SATA PHY for low cost mass production
NAND Flash Interface
Build-in hardware ECC circuit (48bit/2KB)
Support all types of SLC and MLC NAND Flash
ONFI2.0 Interface support: 5 channels max, mode 2
Bus Width: 8/16 bit
Support 8 Flash chip enable
Mobile-DDR interface
32 bit data bus
Data Rate: 320Mbps
Bandwidth: 1,280MB/s
Support Capacity: 128MB
Drive Features
Build in 32 bits micro-controller
UART
GPIO
Support TRIM command
Support SMART command
Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.
- Write speed up to 195MB/sec
- Read speed up to 255MB/sec
- Build-in hardware ECC circuit (48bit/2KB)
- Support TRIM command
- 3 Year Warranty
